GLM Marine aftermarket Mercruiser Alpha 1 (one) generation 2 driven gear bearing shim kit for upper gearcase
  • OEM number 16-36178
  • Shim kit GLM Marine number 23270
  • Mercruiser Alpha 1 generation 2 stern drive upper gearcase parts drawing number 8
  • For tech service on parts contact our service tech at (416) 751-7326

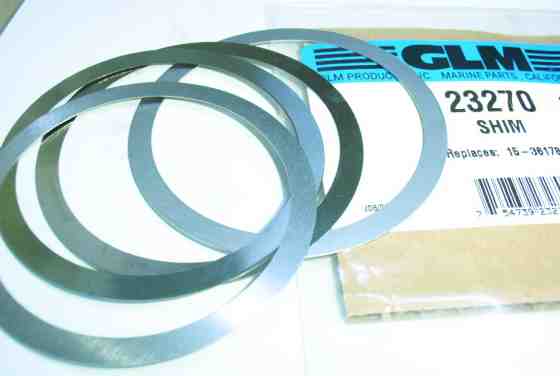

W 23270 Alpha 1 generation 2 driven gear bearing shim.jpg
23270 Alpha 1 generation 2 driven gear bearing shim.

23270 shim kit $5.79

Mercruiser Alpha 1 generation 2 outdrive help

Tech help required, contact our service technition for advice trouble shooting your Alpha 1 generation 2 stern drive unit at (416) 751-7326
