Alpha 1 generation 2 bell housing parts drawing

GLM aftermarket Mercruiser Alpha 1 Gen 2 bell housing parts and tech drawings

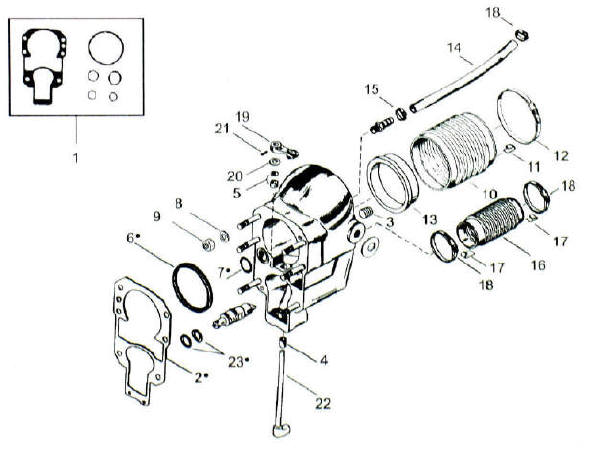

Mercruiser Alpha 1 generation 2 bell housing breakdown drawing
Schematic showing bellows, gimbal bearing, hoses and all other bell housing parts
Use gasket sealing compound on installation gasket and bellows cement when installing rubber bellows

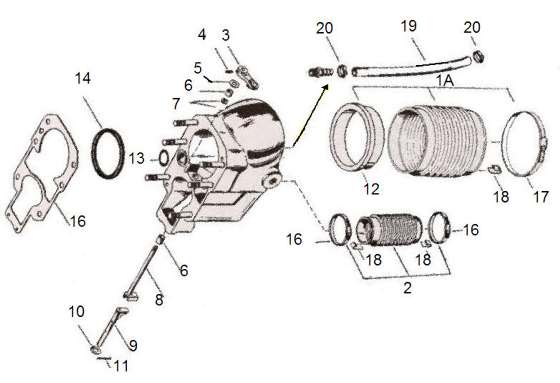

Alpha 1 generation 2 bell housing parts layout

Click below

for larger


Ref

#

Item description

Add to cart

21960 Mercruiser transom service kit s.jpg

Mercruiser transom service kit

A

# 21960 Alpha one generation 2 for units 1992 and up transom service kit

89180 U-Joint bellow

89100 Exhaust bellow

89080 shift cable bellow

39622 gasket kit

21900 gimbal bearing

47110 water hose 3/4"

$159.29

39622 MR Alpha one Alpha one generation II.jpg

1

# 39622 Bell housing gasket kit for OEM # 27-94996A2

$6.29

2

# 31141 Gasket
OEM # 27-94996-2

T 21893 plug.jpg

21893 plug

3

# 21893 Pipe Plug
OEM # 22-32802

4

# 21680 Bushing
OEM # 23-814308

87651 Bushing Kit

5

# 87561 Bushing kit serial # F094774 and below

OEM # 23-805041A2

$28.89

87562 shift shaft bushing.jpg

87562 shift shaft bushing

5

# 87562 Bushing kit serial # F094775 and up

OEM # 23-806036A1

$11.89

31160 Gasket

6

# 31160 Gasket (1 unit)
OEM # 27-35982

$4.09


89181 Sleever

7

# 89181 Sleeve

OEM # 816607

$14.89

T 22666 washer.jpg

22666 washer

8

# 21666 Washer
OEM # 12-35935

21170 Nut

9

# 21170 Nut
OEM # 11-859116

$9.09

89180 u joint bellow s.jpg

89180 u joint bellow

10

# 89180 U-joint bellow with clamps OEM # 816431A1

$59.09

89440 Grounding Clips

11

# 89440 Grounding clip (5 units)

OEM # 54-86049

$4.09

01100 Clamp

12

# 01100 Clamp

OEM # 54-815504372

$4.89

82200 O Rings

13

# 82200 O-Ring (5 units)

OEM # 25-33504

$9.89


47110 Water Hose

14

# 47110 Water hose 3/4 " ID use with

OEM # 32-41725-33

$9.89

01073 hose clamp.jpg

01073 hose clamp

15

# 01073 Clamp

OEM # 54-8155441 2

$4.89

89100 Mercruiser Exhaust Bellow s.jpg

89100 Mercruiser Exhaust Bellow

16

# 89100 Exhaust bellow kit

OEM # 18654A1

$23.09

T 01070 Hose clamp.jpg

01070 Hose clamp

18

# 01070 Clamp

OEM # 54-815504348

$4.89

21140 shift arm.jpg

21140 shift arm

19

# 21140 Shift arm

OEM # 45518A3

$21.89

30040 gasket.jpg

30040 gasket

20

# 30040 Gasket (3 units)

OEM # 12-39116

$4.09

21750 set screw.jpg

21750 set screw

21

# 21750 Set screw

OEM # 10-45590

$4.09

22

# 21419 Upper shift shaft
(For Alpha One Gen ll)

OEM # 816685

$36.89
