GLM Marine aftermarket Mercruiser Alpha 1 (one) generation 2 spacer for upper gearcase
  • OEM number 43-75325A3
  • GLM number 11230
  • For V6 and 4 cylinder model 470 or 485
  • 17/19 teeth (1.84 or 1.81 ratio)
  • For years 1991 thru 1997
  • Mercruiser Alpha 1 generation 2 stern drive upper gearcase parts drawing number 6c for gear set

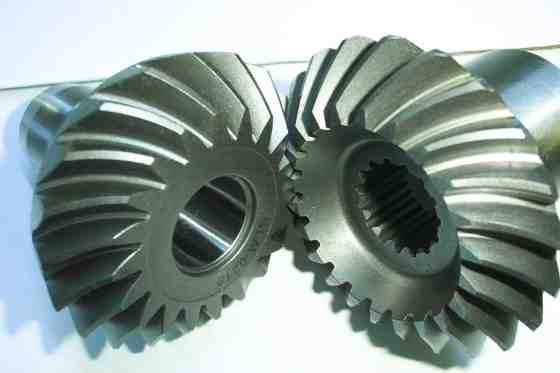

W 11230 Alpha 1 gen. 2 gear set ratio 17/19 V-6 470-485.jpg
11230 Alpha 1 gen. 2 gear set ratio 17/19 V-6 470-485

   11230 Gear set $241.79

Mercruiser Alpha 1 generation 2 outdrive help

Tech help required, contact our service technition for advice trouble shooting your Alpha 1 generation 2 stern drive unit at (416) 751-7326
